mosaiq

Most QR generators are a form that returns a black-and-white PNG. mosaiq is the opposite: the QR is the product. You pick the content (URL, Wi-Fi, PIX, WhatsApp, contact, event, and nine more kinds) and the style (color, gradient, module shape, eyes, frame, logo) while the preview updates in the browser. Download as SVG, PNG or PDF. No login, no API, no database.

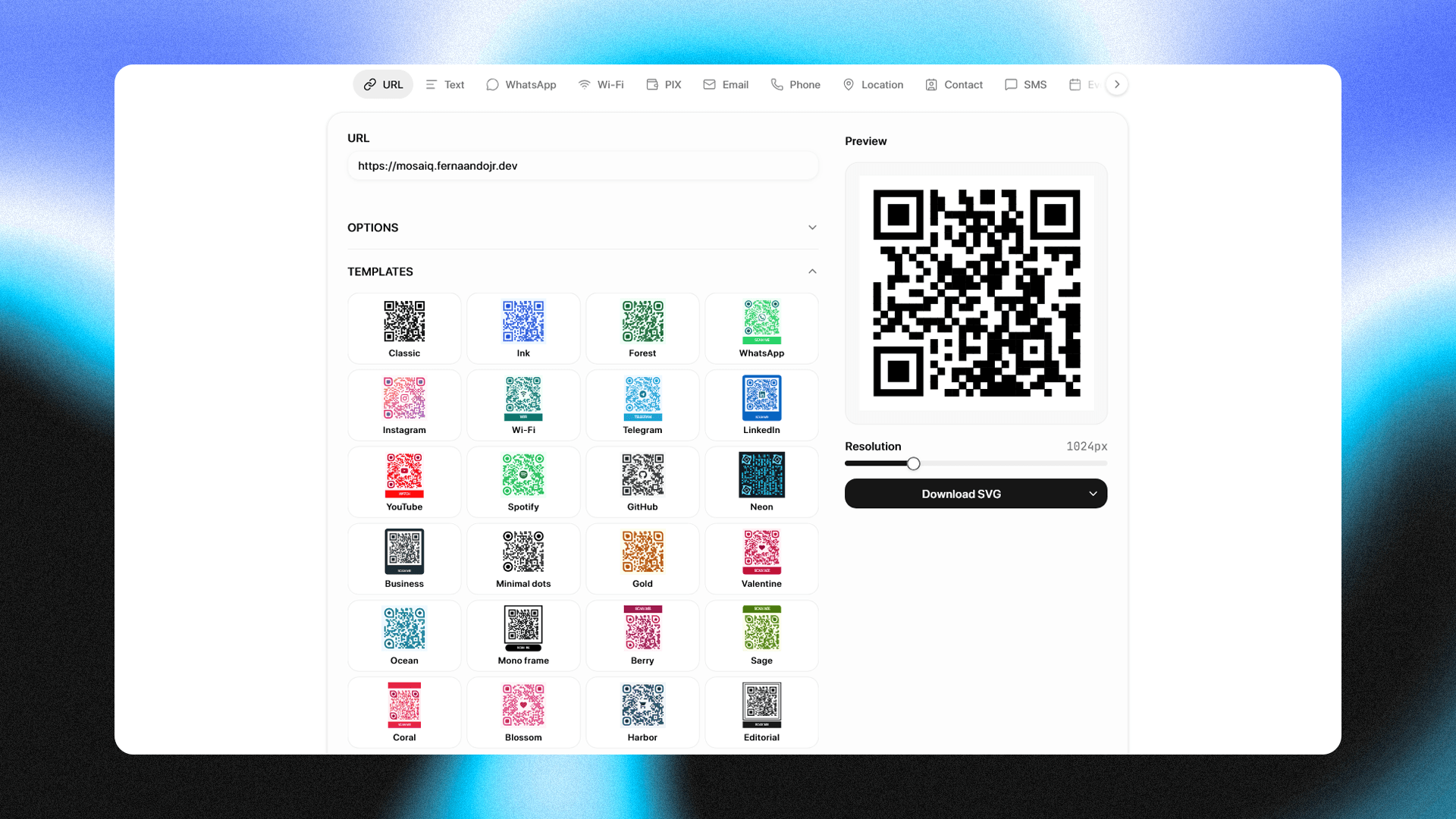

The landing is not a screenshot. The hero is the editor: type a URL, switch the template, download. The background shader follows the colors of the style you picked.

Closed encoding, open rendering

A QR has two halves. Encoding is ISO/IEC 18004: Reed-Solomon, mask selection, matrix version. That standard is closed; reimplementing it is an invitation to codes that do not scan. The qrcode library handles it.

Rendering is where the product lives. Libraries like qr-code-styling ship fast and lock you in: module shapes are a closed enum (square | dots | rounded | classy | extra-rounded). A new shape means a fork. Outside the browser they need jsdom + canvas.

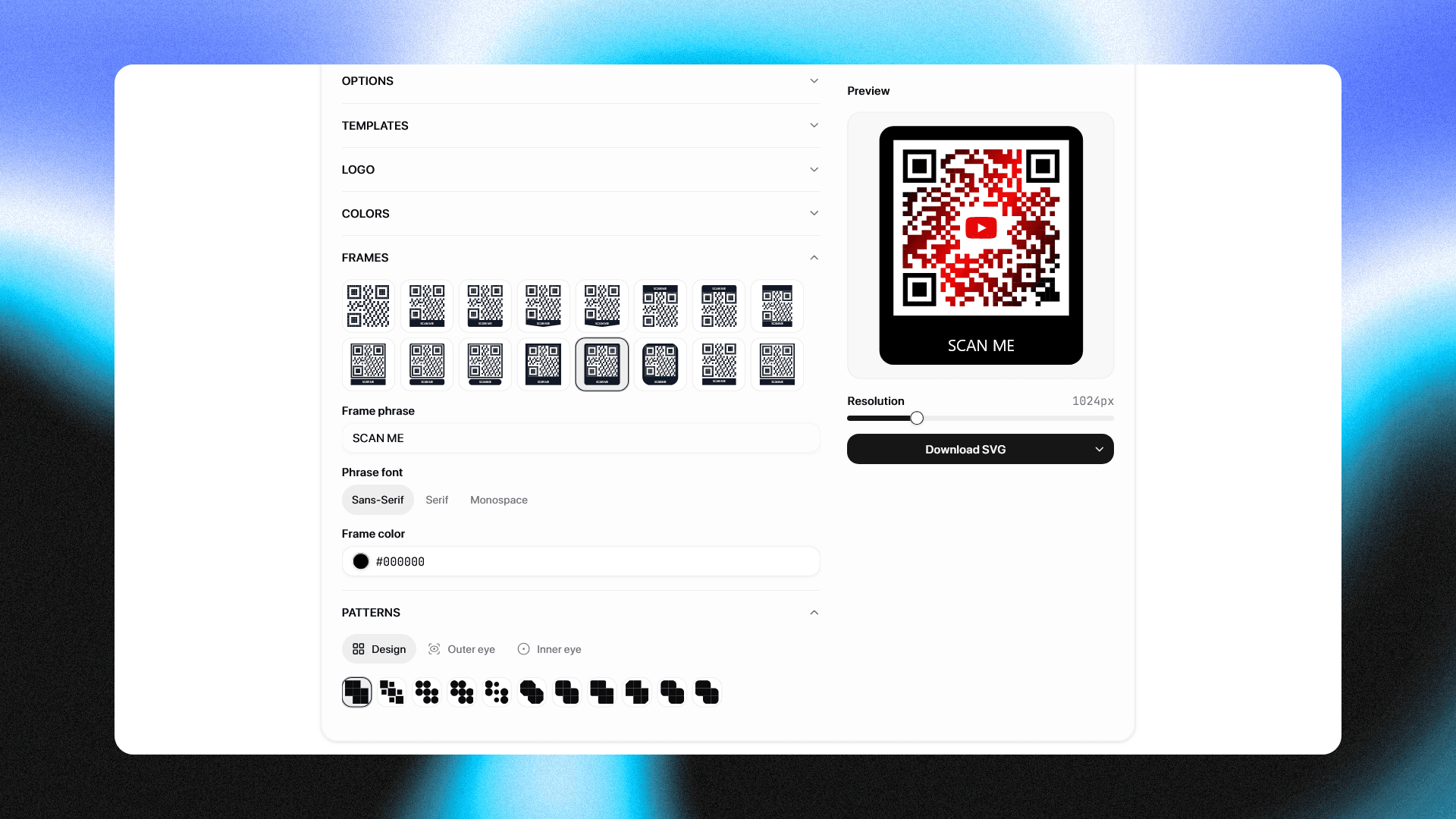

mosaiq's renderSvg is a pure function: matrix plus style in, SVG string out. No DOM, no node:*, no canvas. A new module shape is one catalog entry. Today that is 12 module shapes, 16 eye shapes and 15 frames. The same function feeds the preview and the file the person downloads.

The cost we took on: scan QA is ours. Without a test, an aggressive style makes it onto paper and does not scan.

Round-trip as the quality signal

The test that matters rasterizes the SVG, runs it through jsqr and compares against the original payload. It runs for all 13 CONTENT_KINDS and every moduleShape. If the round-trip breaks, CI breaks. Visual inspection does not catch that failure.

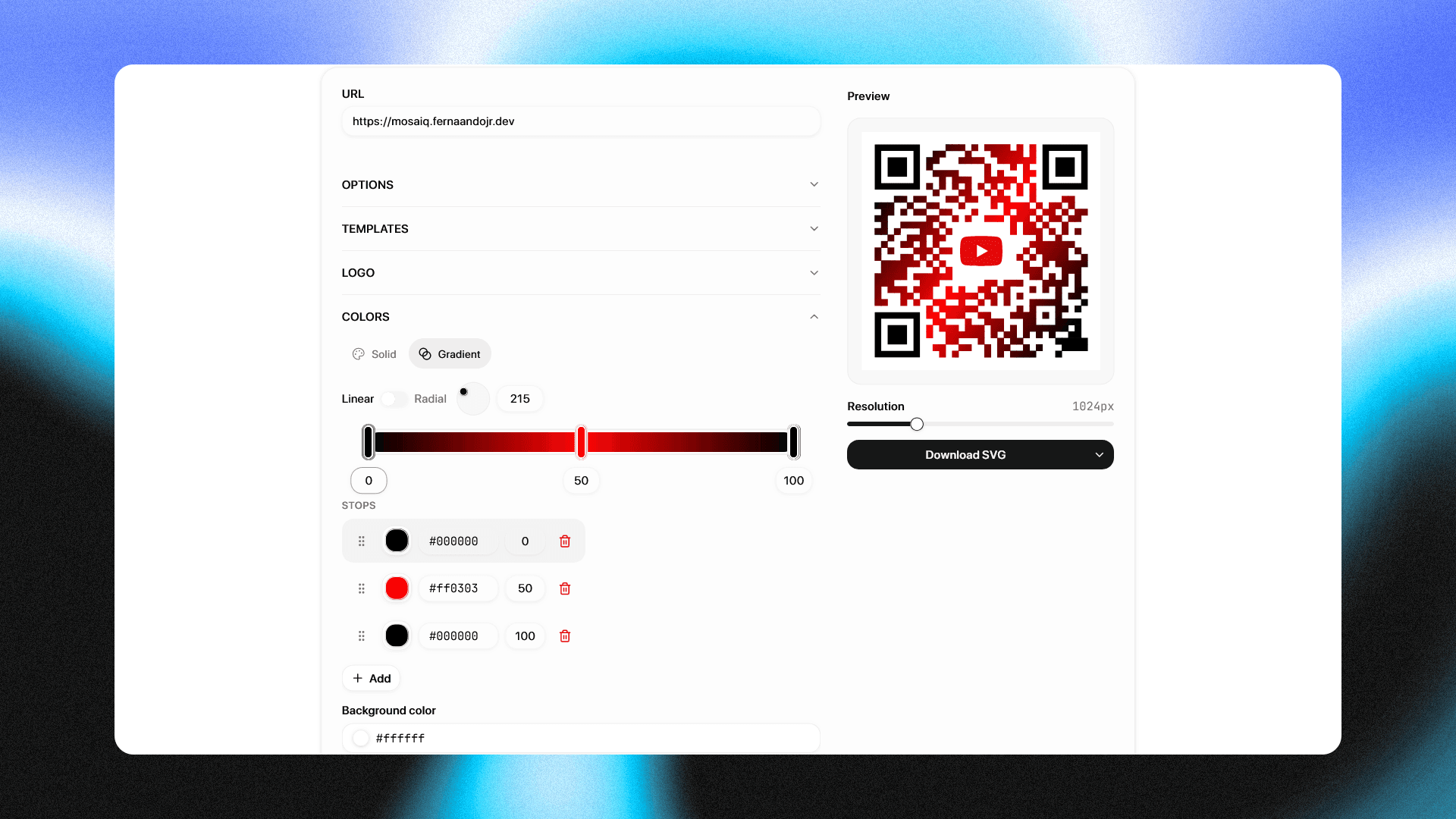

A centered logo forces ECC H in the schema. High error correction, otherwise the hole in the middle eats too much data. The renderer also excavates modules under the logo so a dark module is not drawn behind the image.

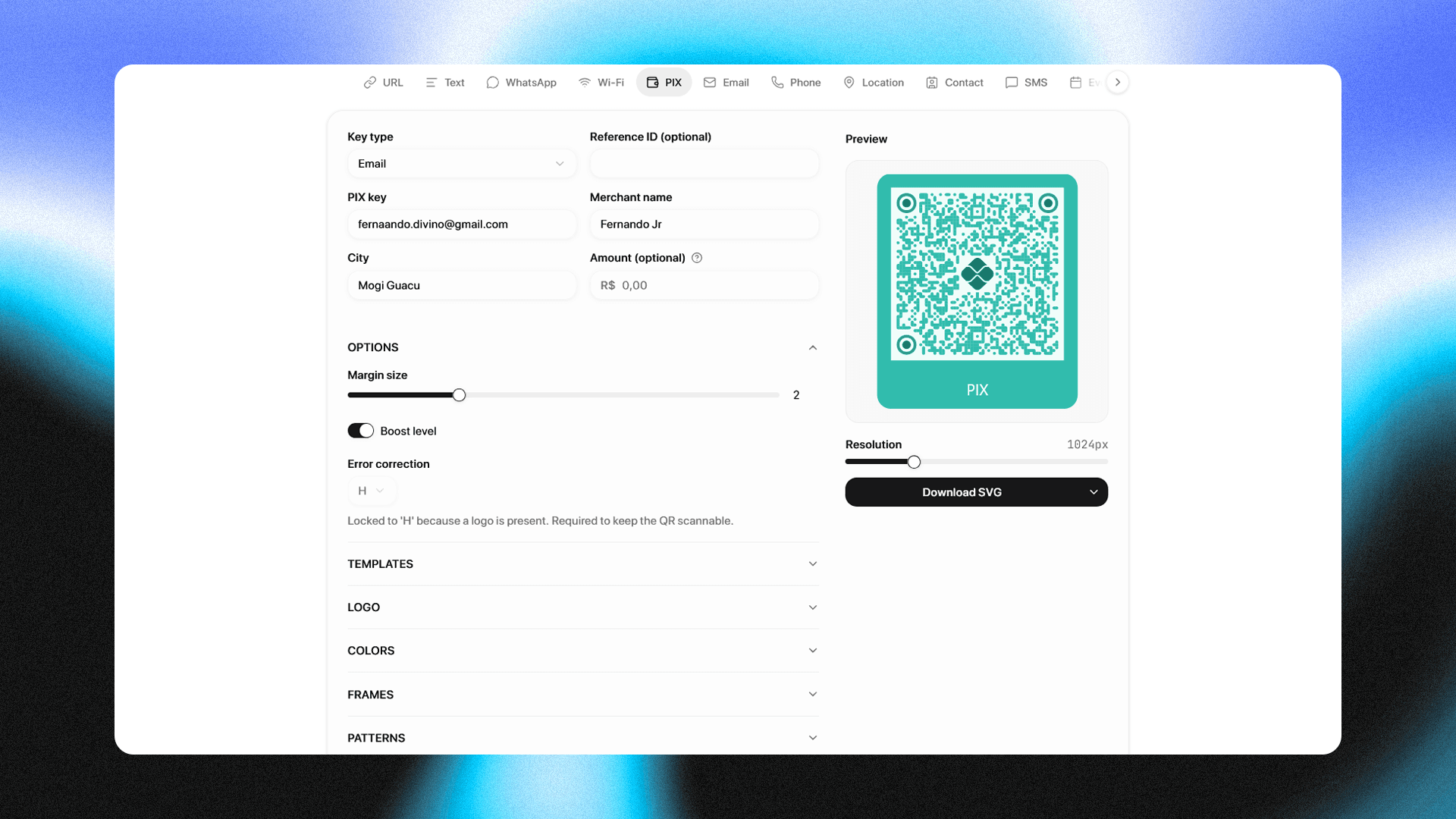

Real PIX, not a shortcut

PIX is not a URL. It is EMV TLV with CRC-16/CCITT-FALSE, merchant account BR.GOV.BCB.PIX, currency 986, and CPF/CNPJ/email/phone/random-key validation in the schema. A generator that emits pix.example.com/?key= produces a QR the bank app rejects.

The pix kind is its own encoder in qr-core, sharing the same Zod schema the form uses. Wi-Fi, MeCard, iCal, bitcoin: and wa.me follow the same rule: the payload is the standard, not a wrapper of ours.

One schema, three packages

Turborepo monorepo. packages/domains is the only source of types. Content is a discriminated union on kind, QrStyle describes the look. packages/qr-core imports the schema, encodes and renders. apps/web is Next.js 16: landing, editor, i18n (pt/en) and dark mode. The web app never duplicates a Zod schema that already lives in domains; the core never imports fs or canvas.

Cutting the backend

The first version of the plan was a SaaS: dynamic QR with slug, redirect, scan analytics, better-auth, Mongo, PWA. That product is not in the repository. What exists is the static generator in the client.

Anonymous dynamic QR is a phishing surface with no owner. Login, quota and a dashboard are a different product from the generator. Keeping the backend ADRs as current taught agents to implement a ghost API. They were superseded: when persistence comes back, it will be a new ADR, not a silent reactivation.

What I would do differently

I would treat the renderer as a versioned API from day one. styleVersion: 1 exists in the schema, but shape IDs are still loose strings. A rename would break saved QRs (there are no saved QRs today; the day there are, that bill comes due).
